$58.03
Original: $193.45
-70%ASRock B650M PG Riptide WiFi DDR5 AMD Motherboard—
$193.45
$58.03The Story
Specifications:
| Unique Features | |
|---|---|
| Superb Productivity | PCIe Gen5 (M.2), Dual Channel DDR5 |
| Rock-Solid Durability | 12+2+1 Power Phase, 50A Dr.MOS, Enlarged Heatsink Armor, Integrated I/O Shield |
| Ultrafast Gaming | 2.5G LAN, ASRock Lightning Gaming Ports |
| EZ Update | BIOS Flashback Button, ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| CPU & Chipset | |
| Socket | AMD Socket AM5 |
| CPU Support | Ryzen™ 9000, 8000, 7000 Series |
| Chipset | AMD B650 |
| Memory | |
| Type | DDR5, ECC/non-ECC, un-buffered |
| Slots | 4 x DDR5 DIMM Slots |
| Max Capacity | 256GB |
| Speed Support | Up to 7200+ MHz (OC) |
| Profiles | XMP, EXPO |
| Graphics | |
| Integrated GPU | AMD RDNA™ (depends on CPU) |
| HDMI | HDMI 2.1, up to 4K 120Hz, HDR, HDCP 2.3 |
| DisplayPort | DP 1.4 with DSC, up to 4K 120Hz, HDCP 2.3 |
| Audio | |
| Codec | Realtek ALC897, 7.1 CH HD Audio |
| Enhancement | Nahimic Audio |
| Networking | |
| LAN | 2.5G LAN (Dragon RTL8125BG) |
| Features | Phantom Gaming LAN software, Bandwidth Control, Game/Browser/Streaming Optimizations |
| Expansion Slots | |
| PCIe | 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 3.0 x1 Supports AMD CrossFire™ |
| Storage | |
| CPU | 1 x M.2 PCIe Gen5x4 (M2_1) |
| Chipset | 1 x M.2 PCIe Gen4x4 (M2_2), 4 x SATA3 6.0Gb/s |
| RAID Support | RAID 0/1/10 for SATA & M.2 NVMe |
| USB Ports | |
| Rear I/O | 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen1 (Lightning Gaming) 4 x USB 2.0 |
| Front Panel | 1 x USB 3.2 Gen1 Type-C Header 4 x USB 3.2 Gen1 (via 2 headers) 4 x USB 2.0 (via 2 headers) |
| Internal Connectors | |
| Power | 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V |
| Cooling | 1 x CPU Fan 1 x CPU/WP Fan 3 x Chassis/WP Fans Smart Fan Control, Auto 3-pin/4-pin detection |
| RGB | 1 x RGB Header, 3 x Addressable RGB Headers |
| Others | TPM, Audio, Thunderbolt AIC, Speaker/LED headers |

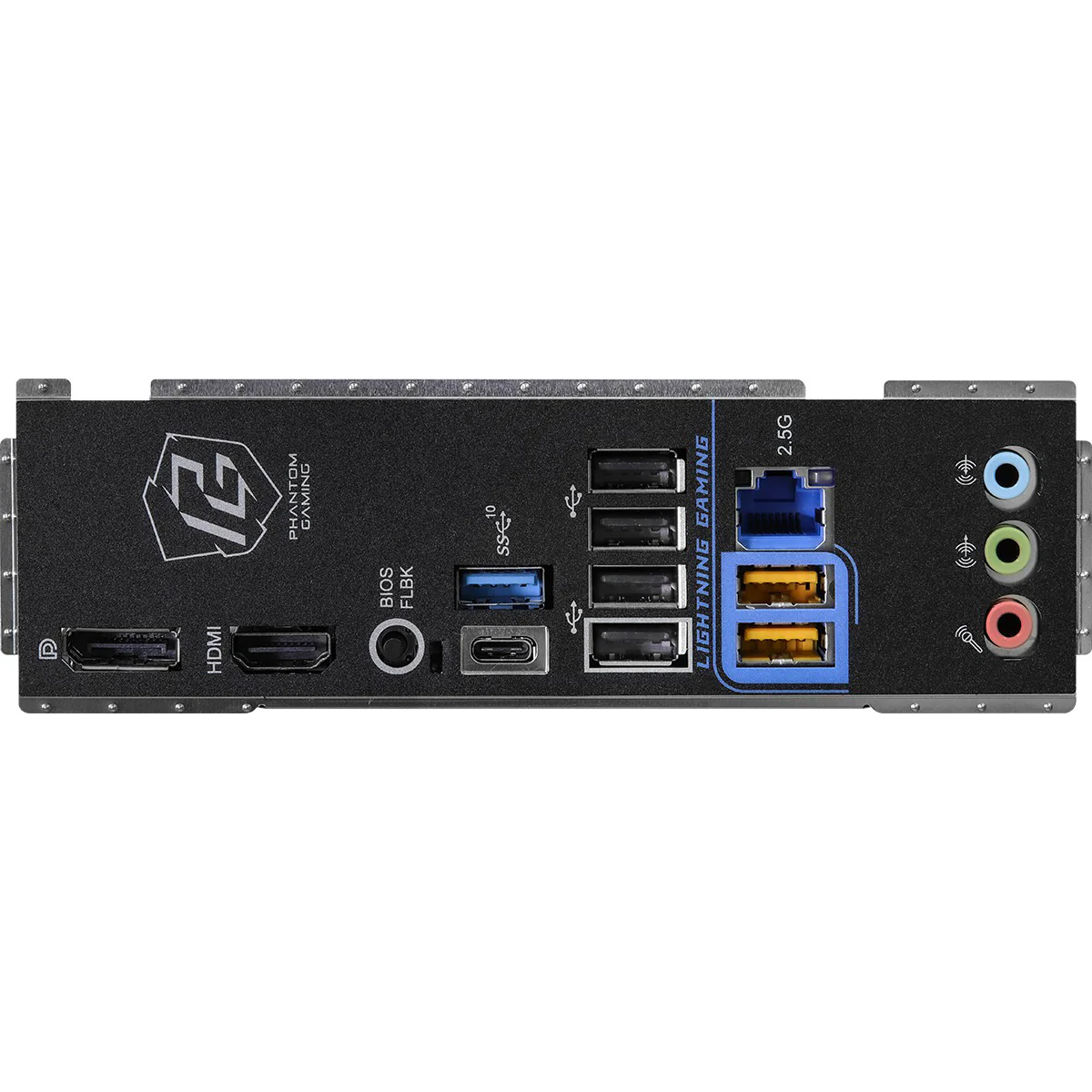

| Rear Panel I/O | |
| Video | 1 x HDMI, 1 x DisplayPort |
| USB | See above |
| Network | 1 x RJ-45 LAN Port |
| Audio | Line In / Front Speaker / Mic |
| Others | BIOS Flashback Button |
| Software & UEFI | |
| Software | Phantom Gaming Tuning, LAN Software, Polychrome SYNC |
| UEFI | Full HD UEFI, Instant Flash, Auto Driver Installer |
| Accessories | |
| Included | User Manual, 2x SATA Cables, 2x M.2 Screws, 1x M.2 Standoff |
| Form Factor & OS | |
| Form Factor | Micro ATX (9.6" x 9.6") |
| PCB | 2oz Copper |
| OS Support | Windows 10/11 64-bit |
| Certifications | |
| Compliance | FCC, CE, ErP/EuP ready |
