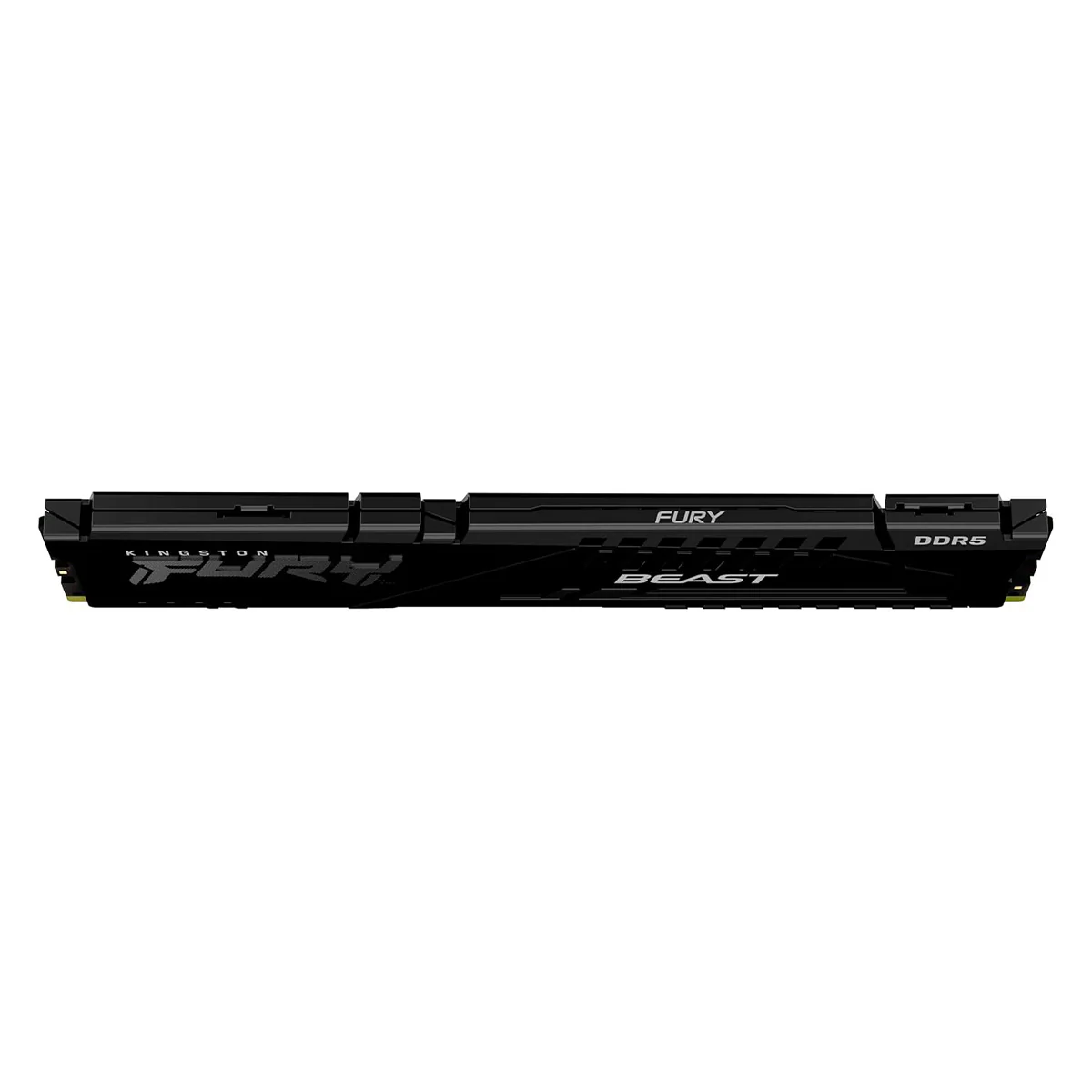

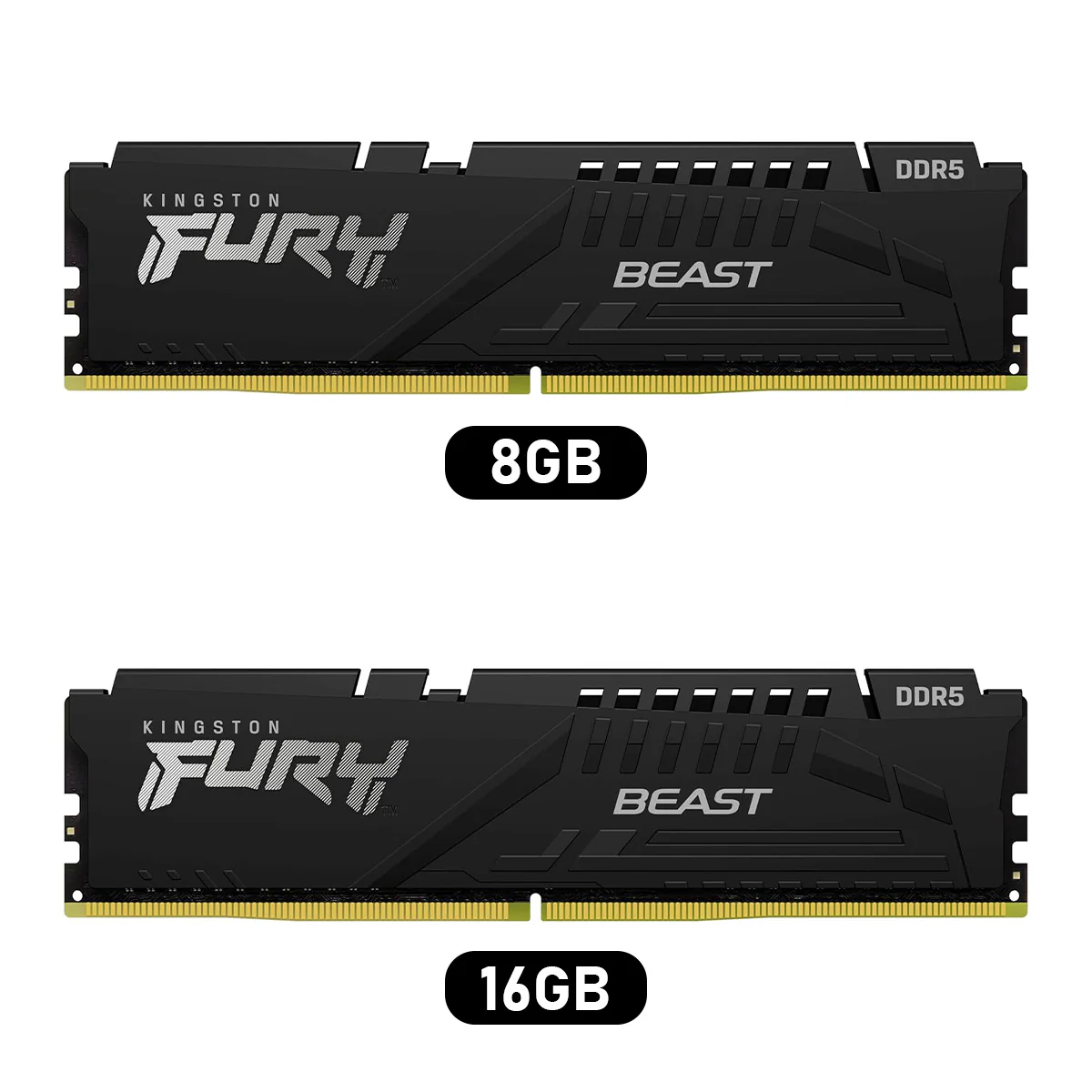

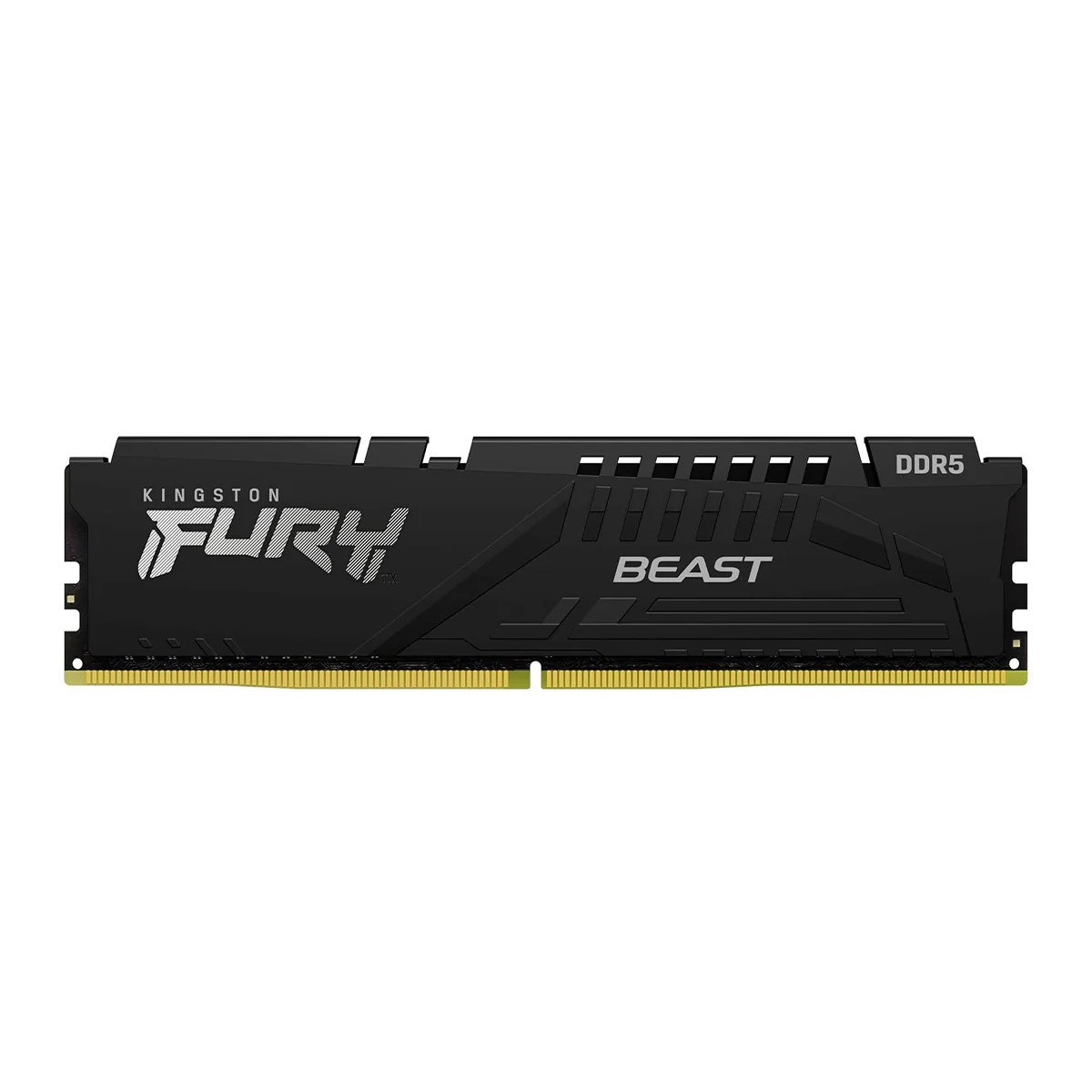

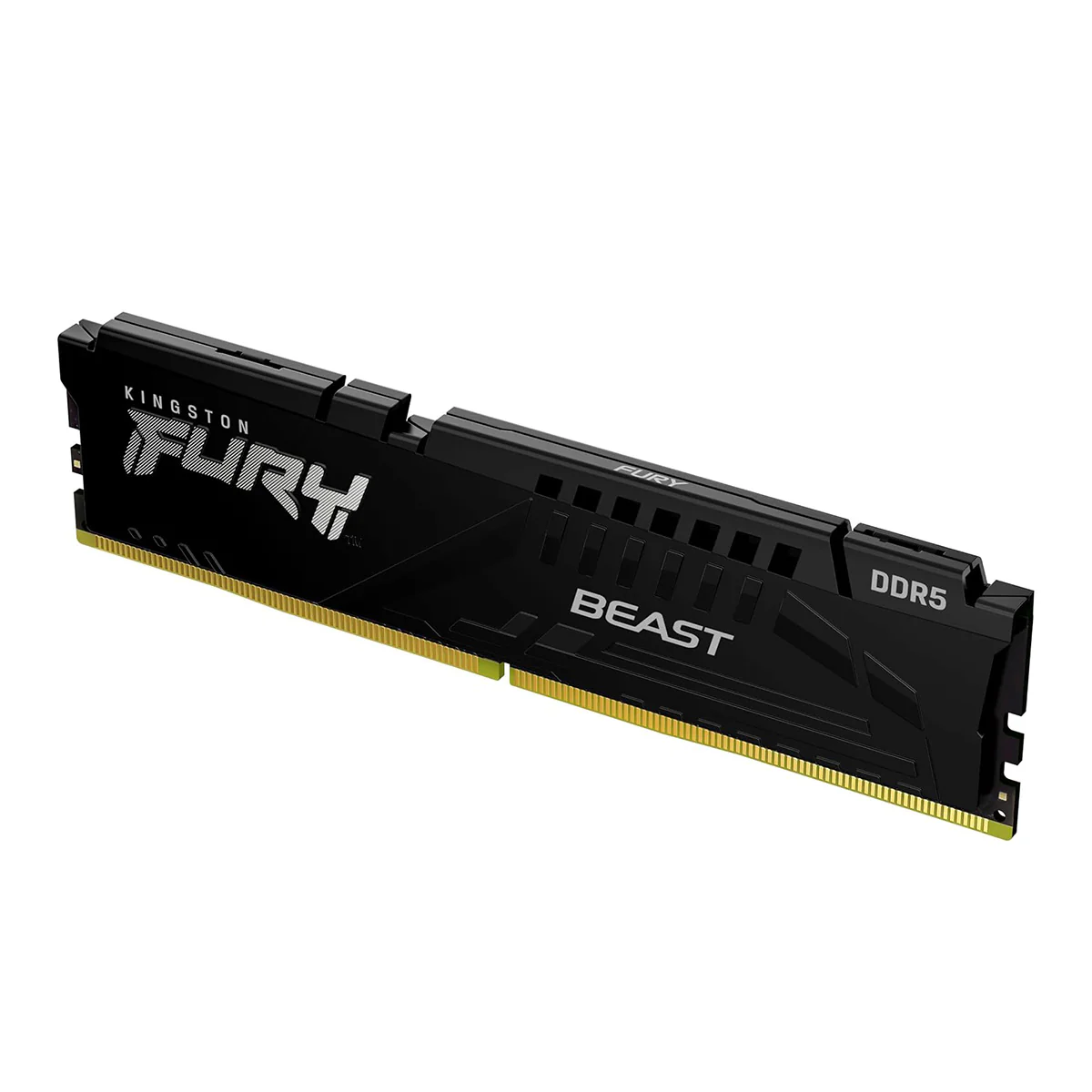

Kingston Fury Beast DDR5 5600MT/s CL36-38-38 1.25V EXPO/XMP Desktop Memory (8GB, 16GB) ((KF556C36BBE-8, KF556C36BBE-16)

Kingston FURY KF556C36BBE-8/16 is a 1G/2G x 64-bit (8GB/16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8/16, memory module, based on four 1G x 16-bit FBGA components per module. The module supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features:

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink





Specification:

CL(IDD)	40 cycles
Row Cycle Time (tRCmin)	48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin	295ns(min.)
Row Active Time (tRASmin)	32ns(min.)
UL Rating	94 V - 0
Operating Temperature	0o C to +85o C
Storage Temperature	-55o C to +100o C
