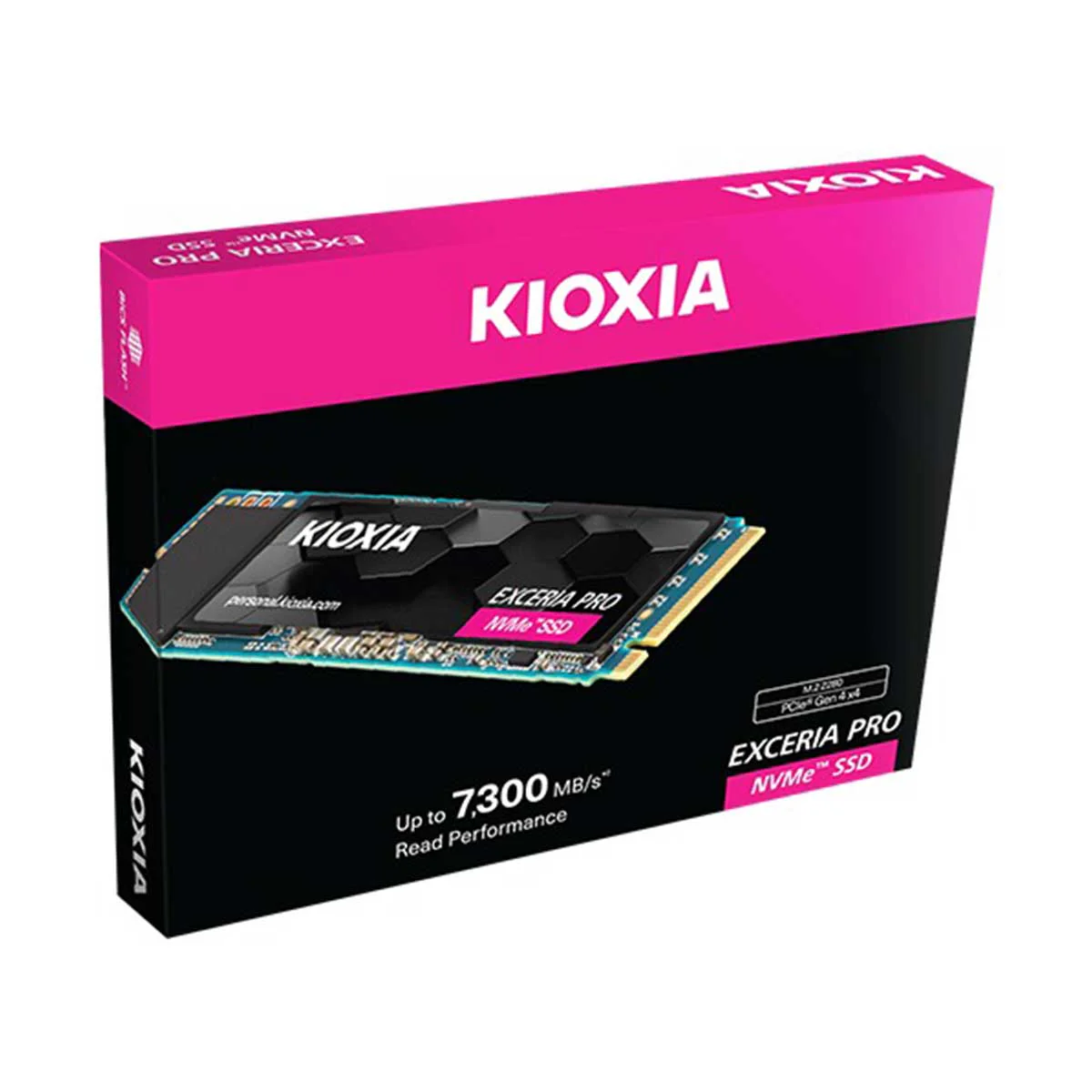

The all-new KIOXIA EXCERIA PRO SSD Series uses next generation technology to take your high-end computing and gaming into a new realm of possibilities. Leveraging PCI Express® 4.0 technology, this M.2 2280 single-sided series now offers up to 2TB of capacity well-suited for both high performance desktops and notebooks needing maximum speed.
Features
- BiCS FLASH™
- NVMe™ 1.4 Technology
- M.2 2280 Form Factor
- PCIe® Gen4 x4
- SSD Utility Management Software
|
Game-Changing Performance Imagine up to 7,300 MB/s of sequential read speed*1 and up to 6,400 MB/s sequential write speed*1, and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel. |
 |
 |
Small and Compact for an Easy Upgrade Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade. |
|
PCIe® 4.0 Technology This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe® 4.0 and NVMe™ 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators. |
 |
 |
Cutting-Edge 3D Flash Memory Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience. |
|
SSD Utility Management Software The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more! We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge. |
 |
Specification:
Specification:

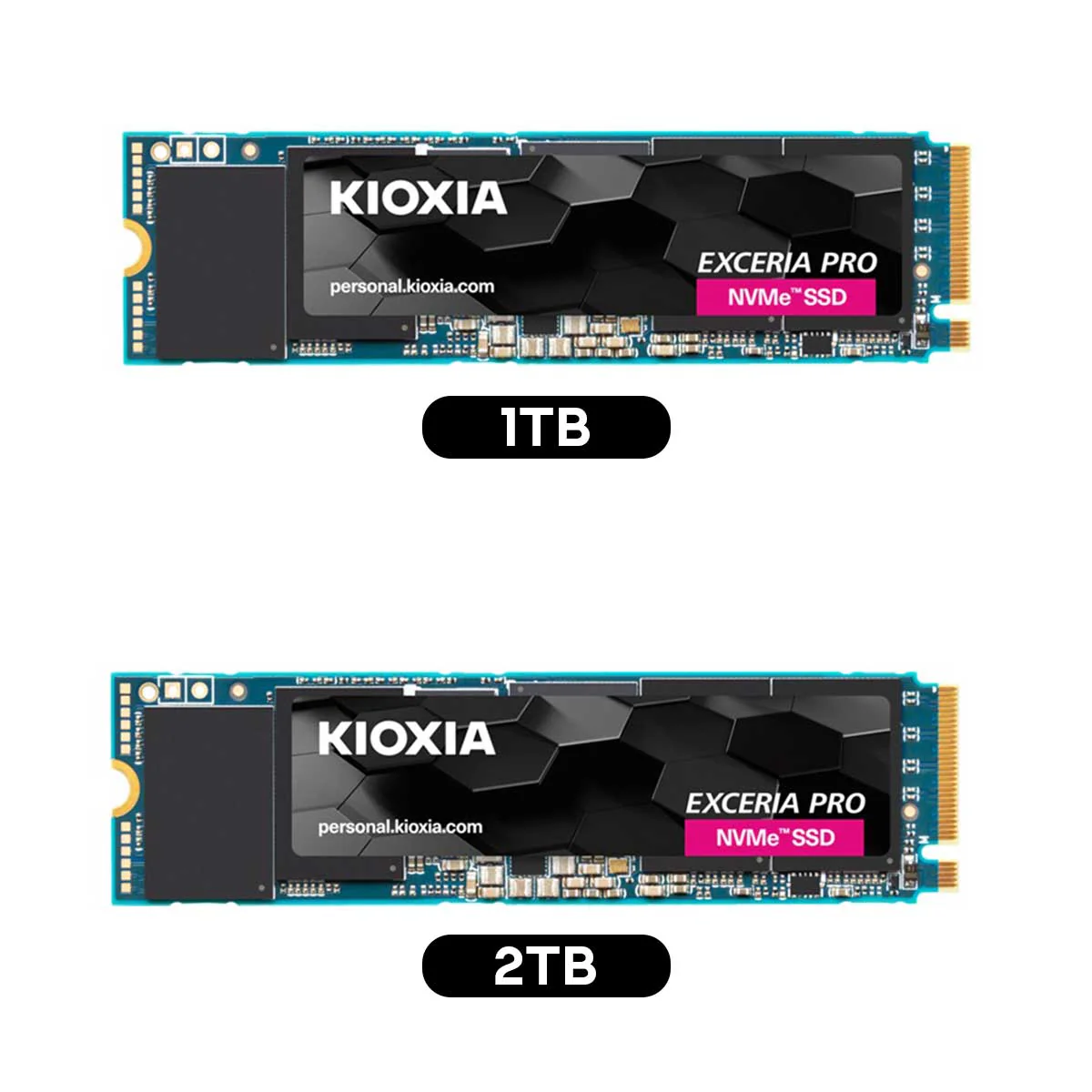

| Capacity | 1TB/2TB |
| Interface | PCI Express® Base Specification Revision 4.0 (PCIe®) |
| Interface Maximum Speed | 64 GT/s (PCIe® Gen4x4) |
| Interface Command | NVM Express™ Revision 1.4 command set |
| Form Factor | M.2 Type 2280-S2-M |
| Flash Memory type | BiCS FLASH™ TLC |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.23 mm |
| Weight | 1TB: 7.6 g (typ.) 2TB: 8.0 g (typ.) |
| Performace |
| Max Sequential Read Speed*1 | 7,300 MB/s |
|
Max Random Read Speed*2 |
1TB: 1,000,000 IOPS 2TB: 800,000 IOPS |
| Endurance: TBW*3 | 1TB: 400 TB 2TB: 800 TB |
| Max Sequential Write Speed*1 | 6,400 MB/s |
| Max Random Write Speed*2 | 1TB: 1,100,000 IOPS 2TB: 1,300,000 IOPS |
| MTTF | 1.5 million hours |
|
Operating environment / protection performance |
| Operating Temperature(Tc) | 0 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Vibration | 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis |
| Power Consumption | PS3: 50 mW (typ.) PS4: 5 mW (typ.) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption (Active) | 8.9 W (typ.) |
