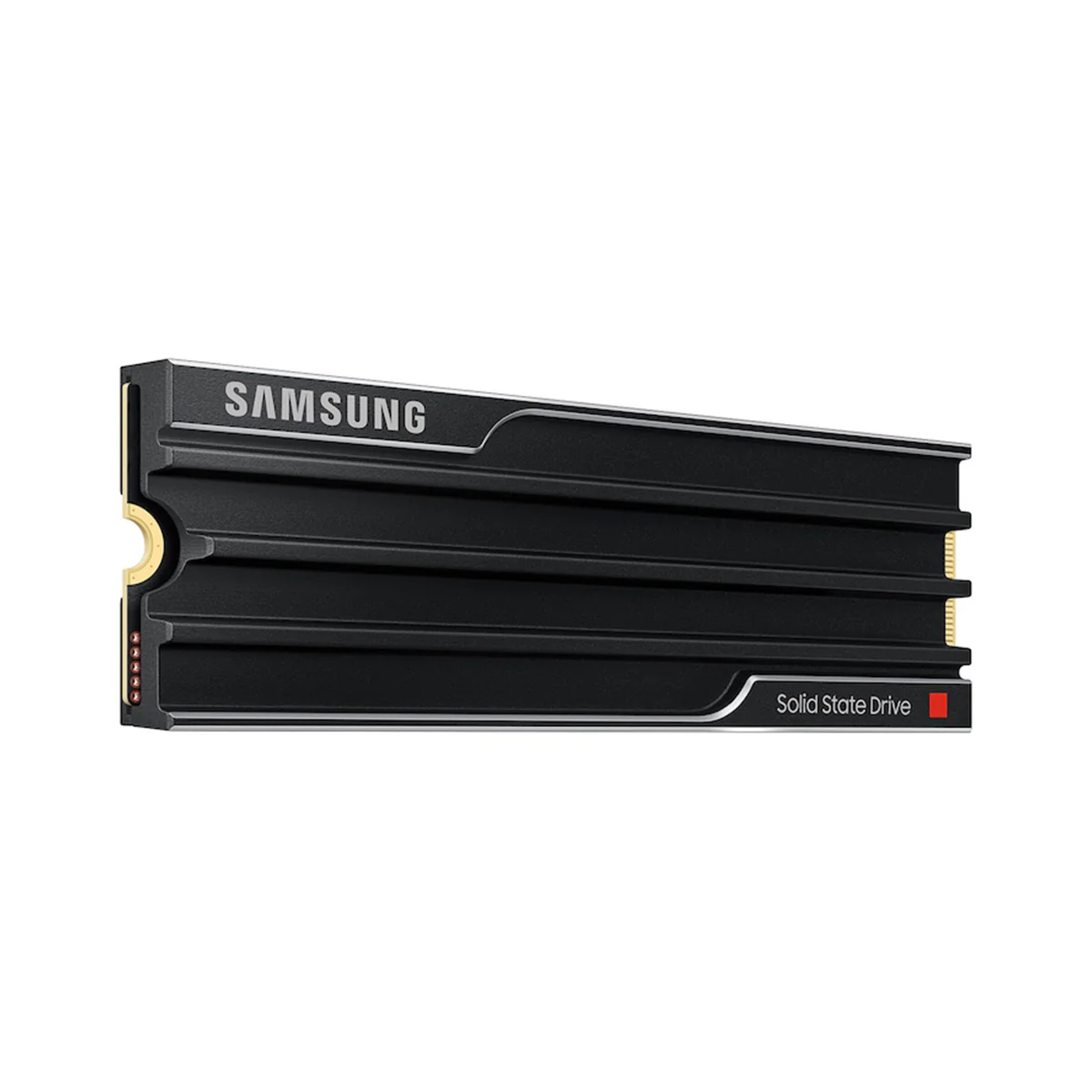

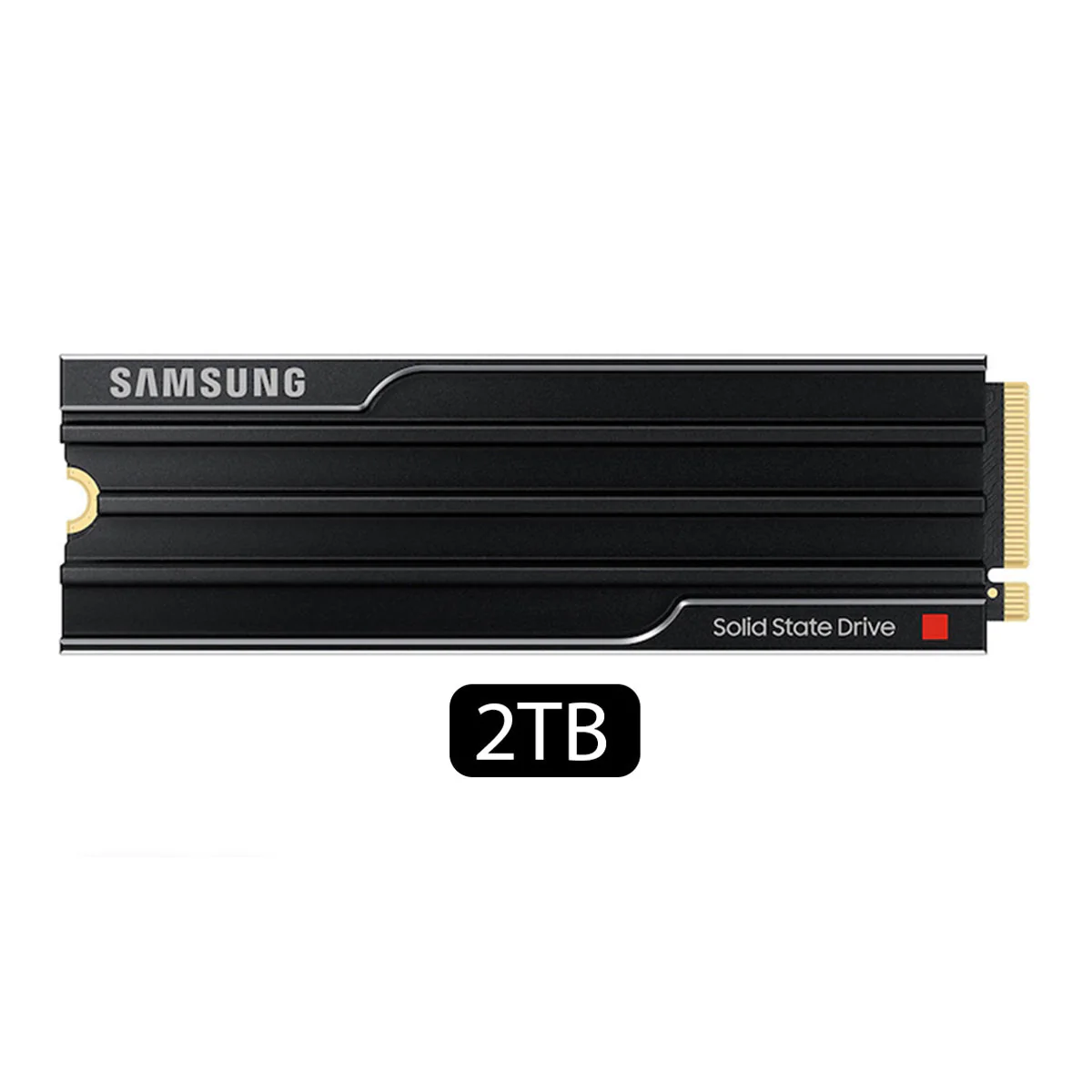

Name: Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD with Heatsink (1TB, 2TB, 4TB, 8TB)
Brand: DataBlitz
SKU: samsung-9100-pro-pcie-5-0-x4-nvme-m-2-ssd-with-heatsink-1tb-2tb-4tb-mz-vap1t0cw-mz-vap2t0cw-mz-vap4t0cw
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Account

Your Cart (0)

Home Store

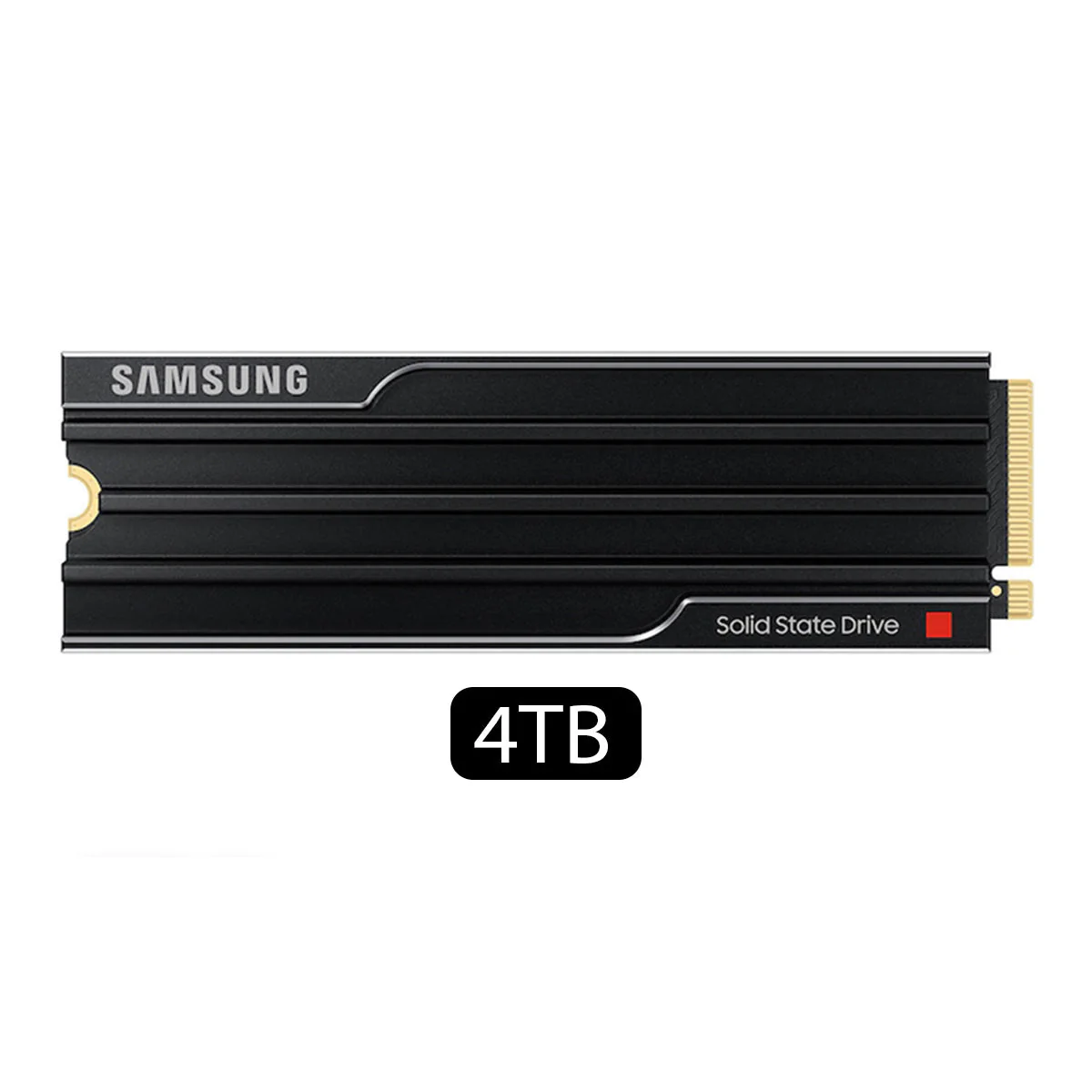

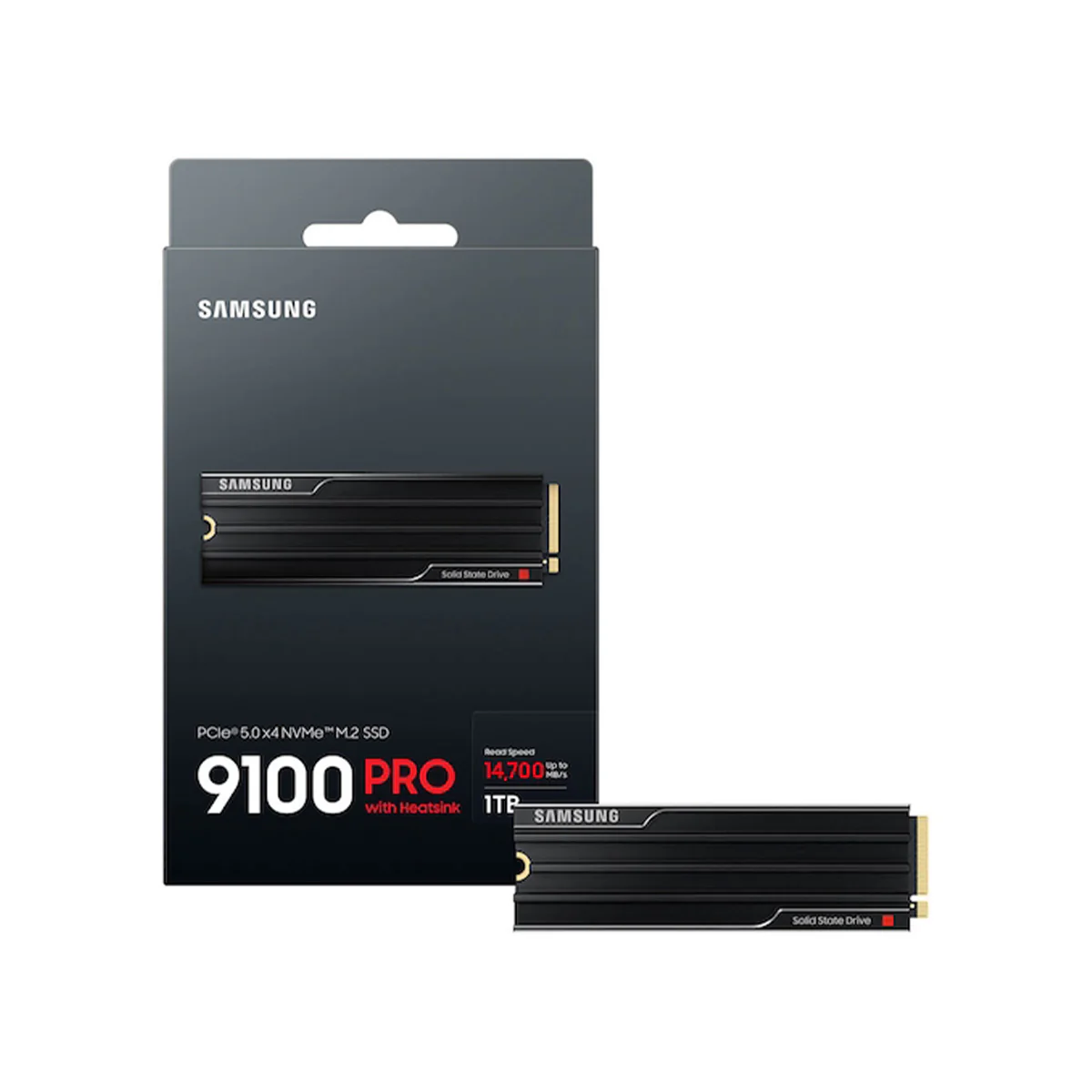

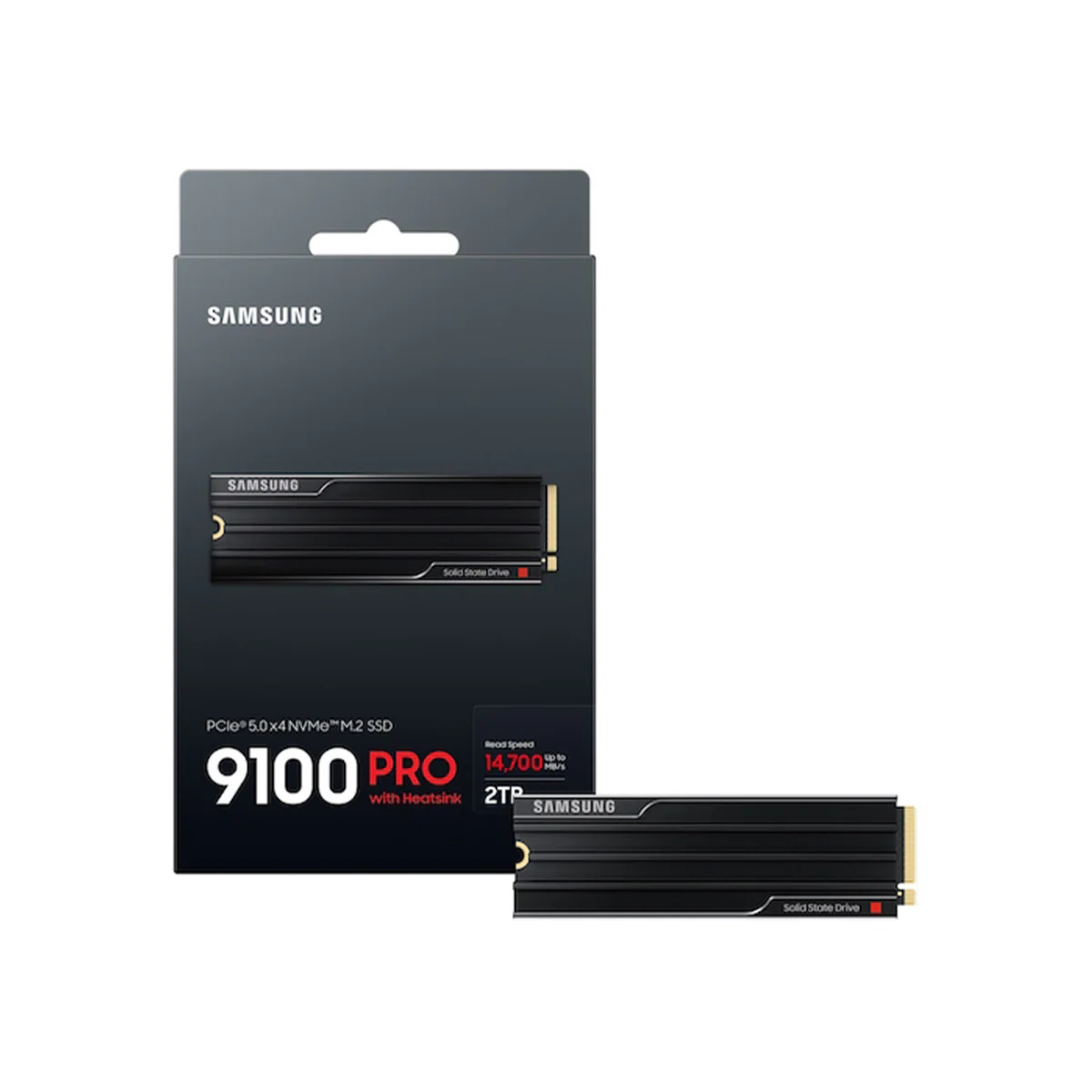

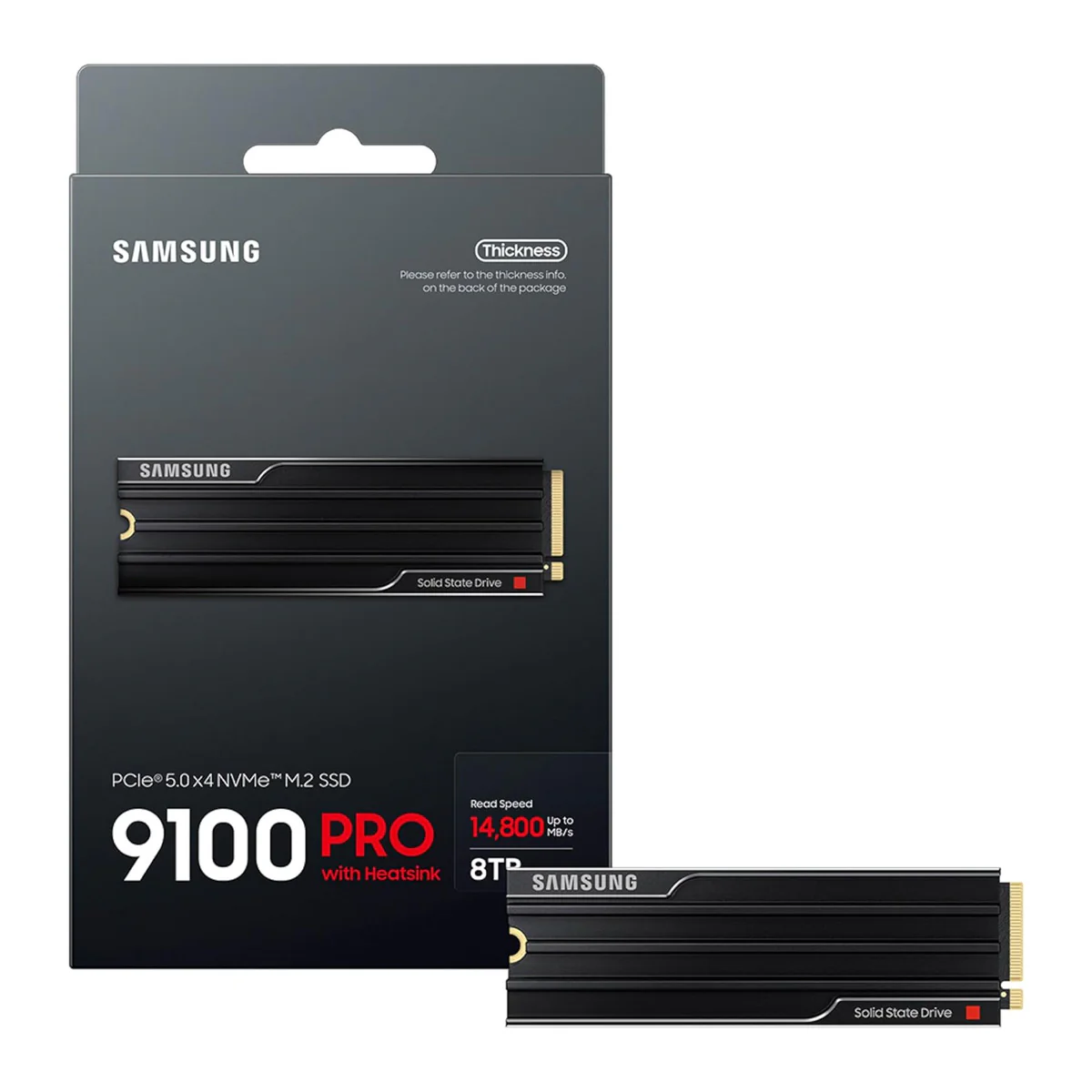

Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD with Heatsink (1TB, 2TB, 4TB, 8TB)

Select Storage Capacity

From $77.82

Original: $259.39

-70%

Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD with Heatsink (1TB, 2TB, 4TB, 8TB)—

$259.39

$77.82

Select Storage Capacity

From $77.82

Original: $259.39

-70%

Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD with Heatsink (1TB, 2TB, 4TB, 8TB)—

$259.39

$77.82

The Story

Performance ready for a new era

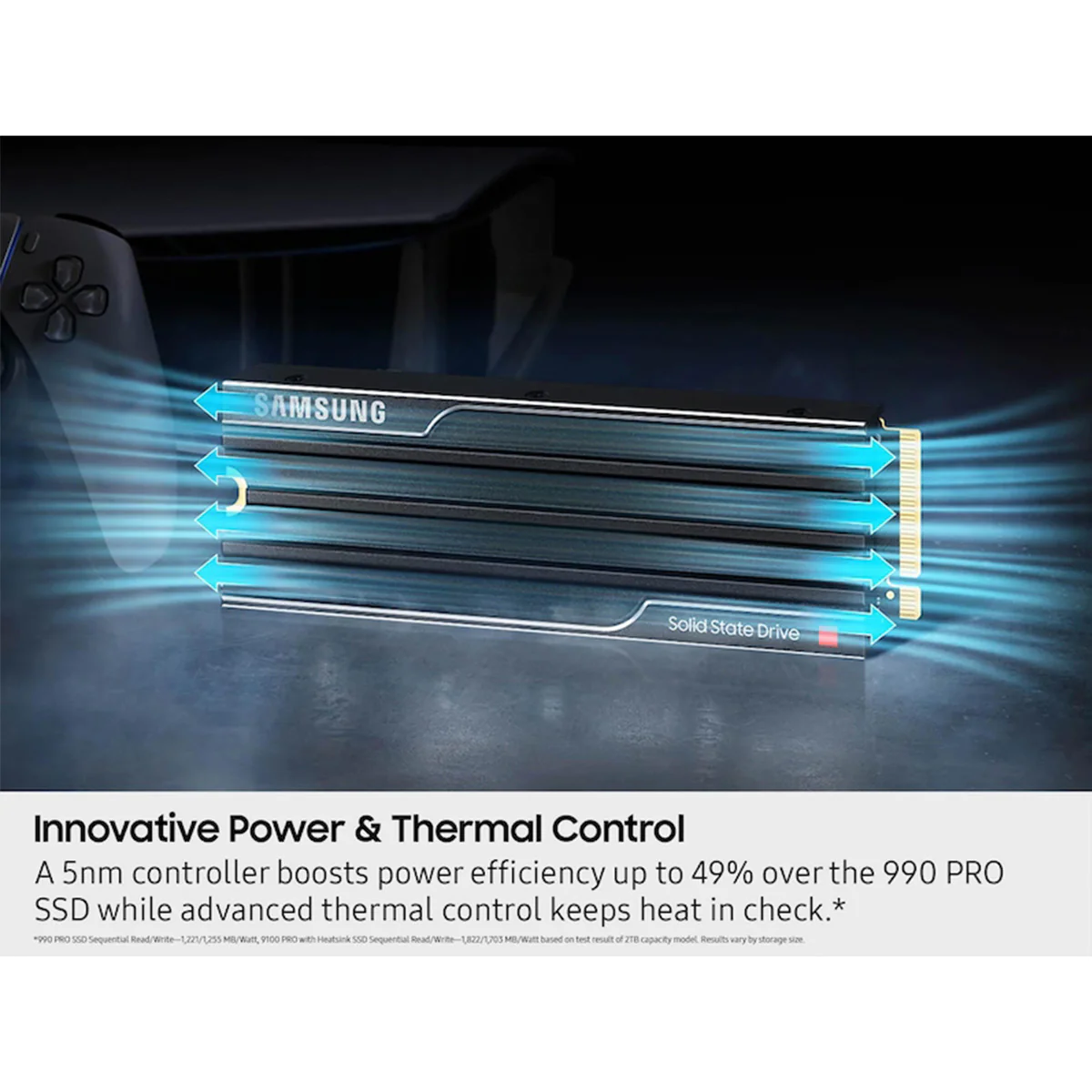

Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD¹ and up to an 4TB storage option,² the Samsung 9100 PRO with Heatsink SSD supercharges AI workloads, 4K video rendering, and gaming.

Specification:

Form Factor	M.2

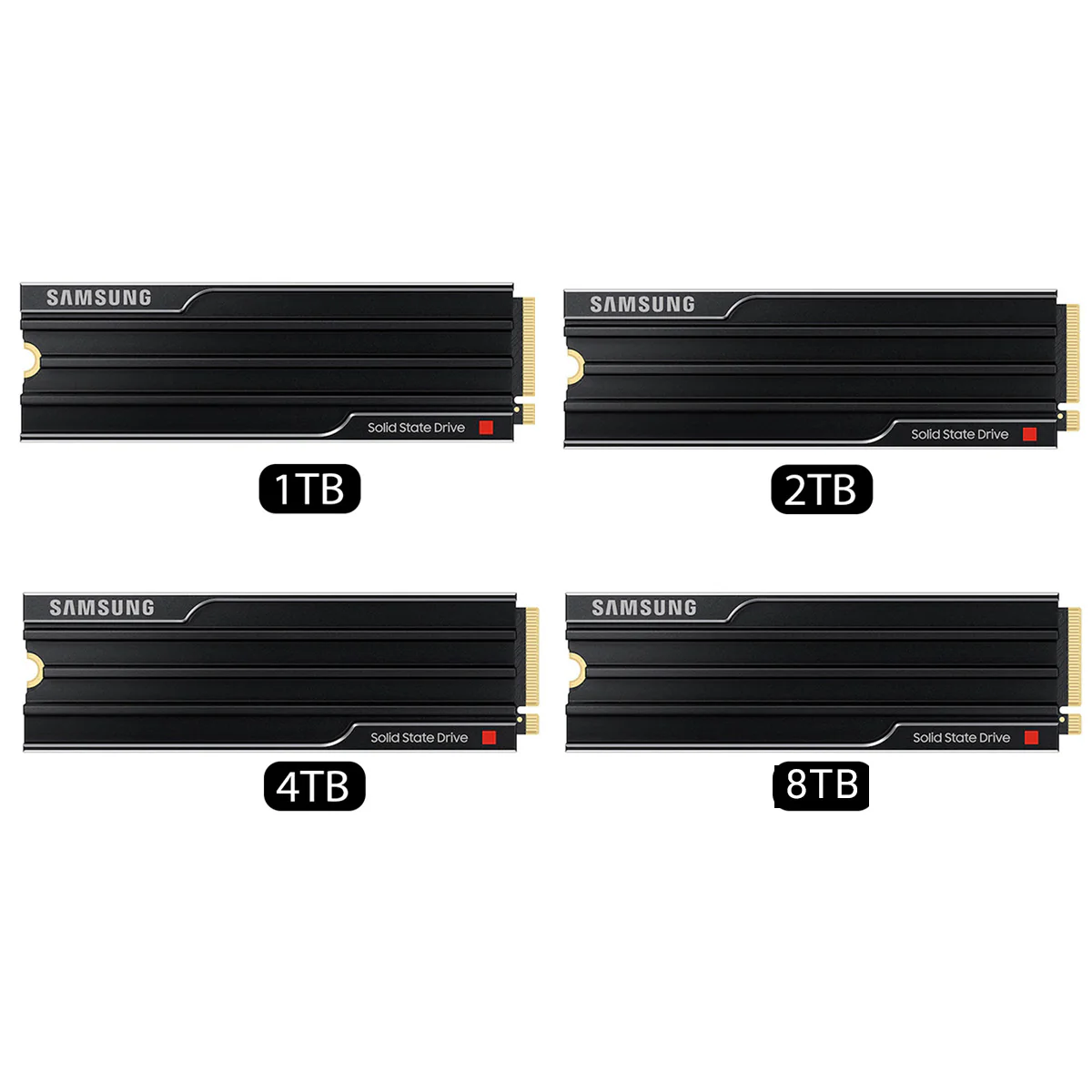

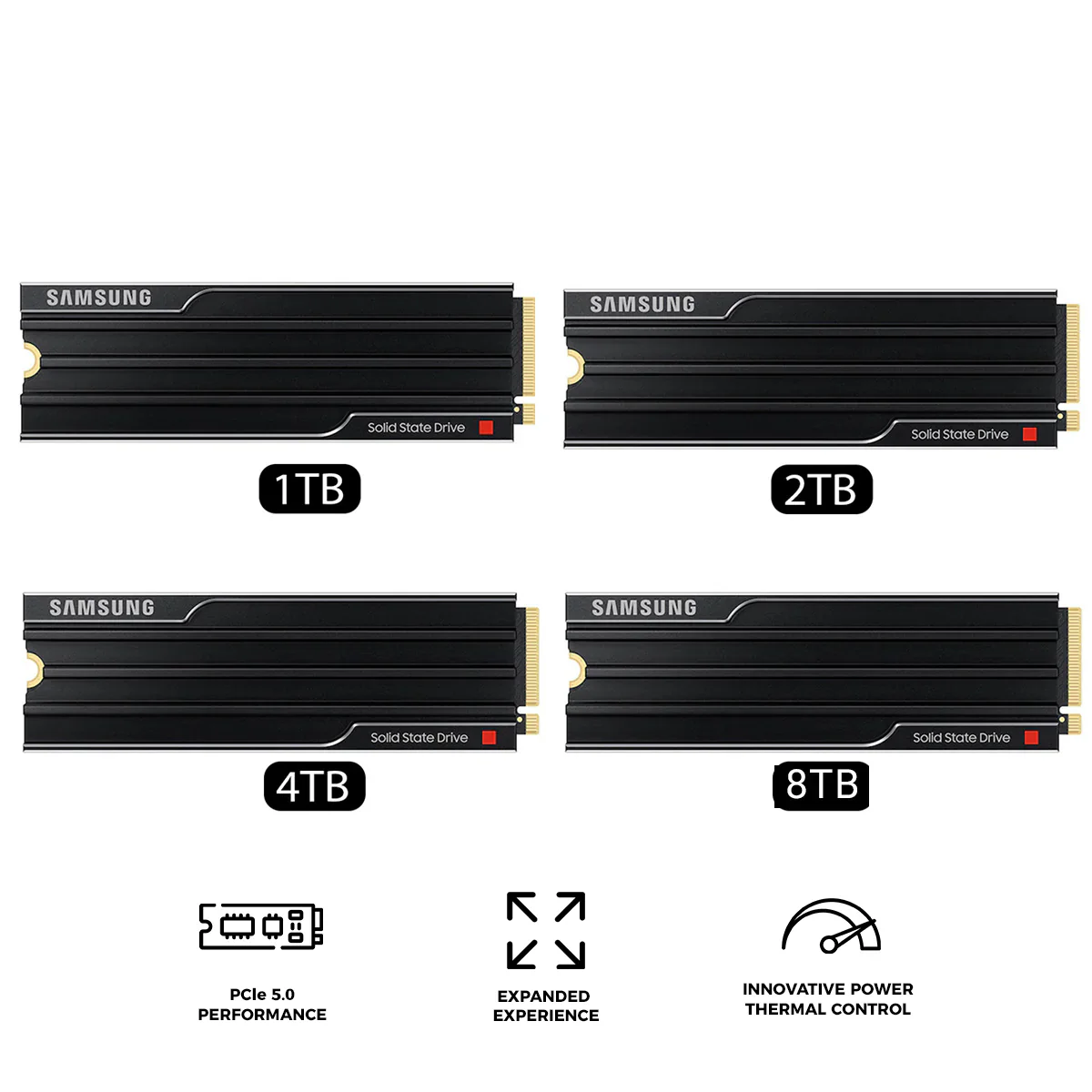

Capacity	1TB, 2TB, 4TB, 8TB
Sequential Read Speed	Up to 14,800 MB/s
Sequential Write Speed	Up to 13,400 MB/s
Model Code (Capacity)	MZ-VAP1T0CW (1TB) MZ-VAP2T0CW (2TB) MZ-VAP4T0CW (4TB) MZ-VAP8T0CW (8TB)

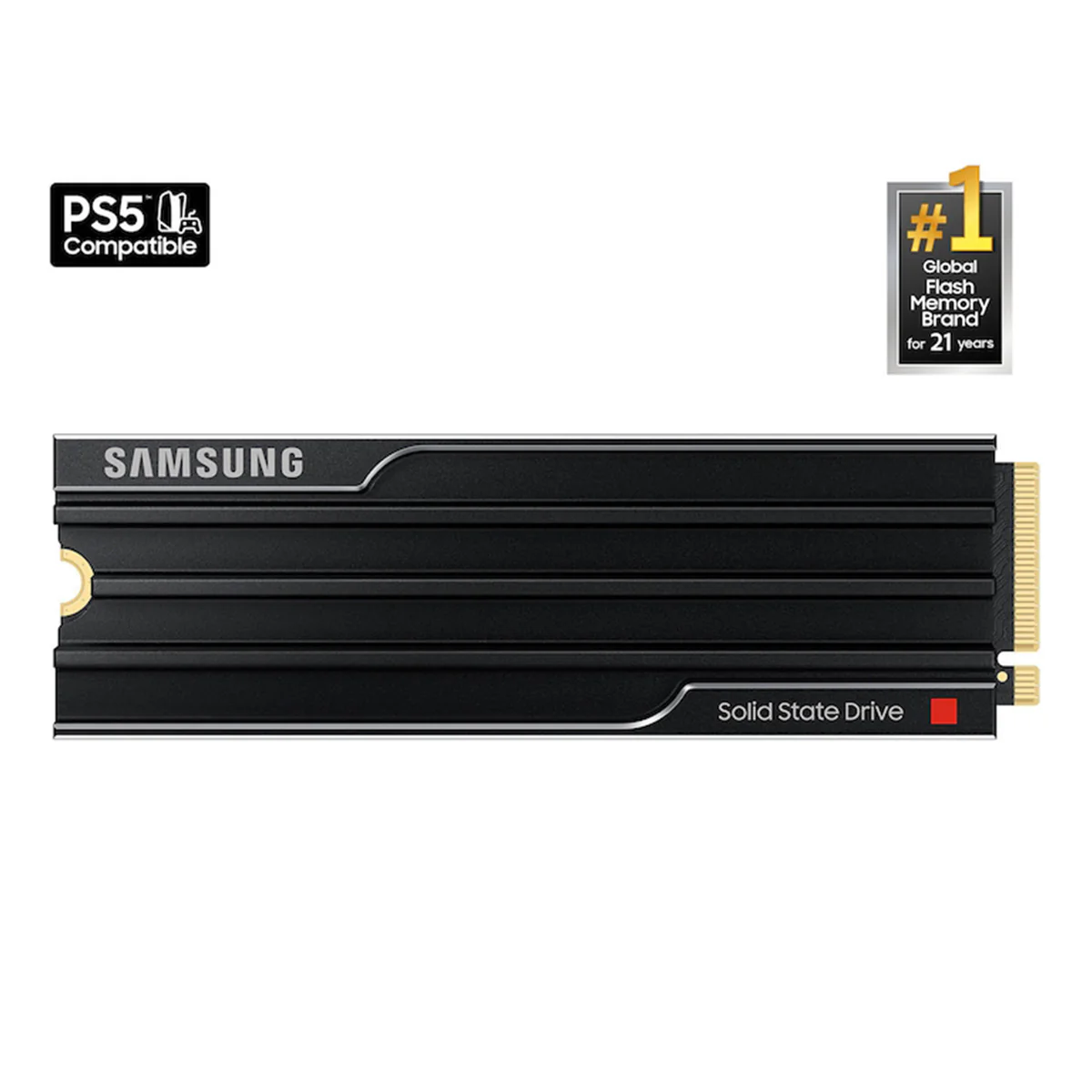

General Feature - Application	Client PCs, PlayStation®5
FORM FACTOR	M.2 (2280)
INTERFACE	PCIe® 5.0 x4, NVMe™ 2.0

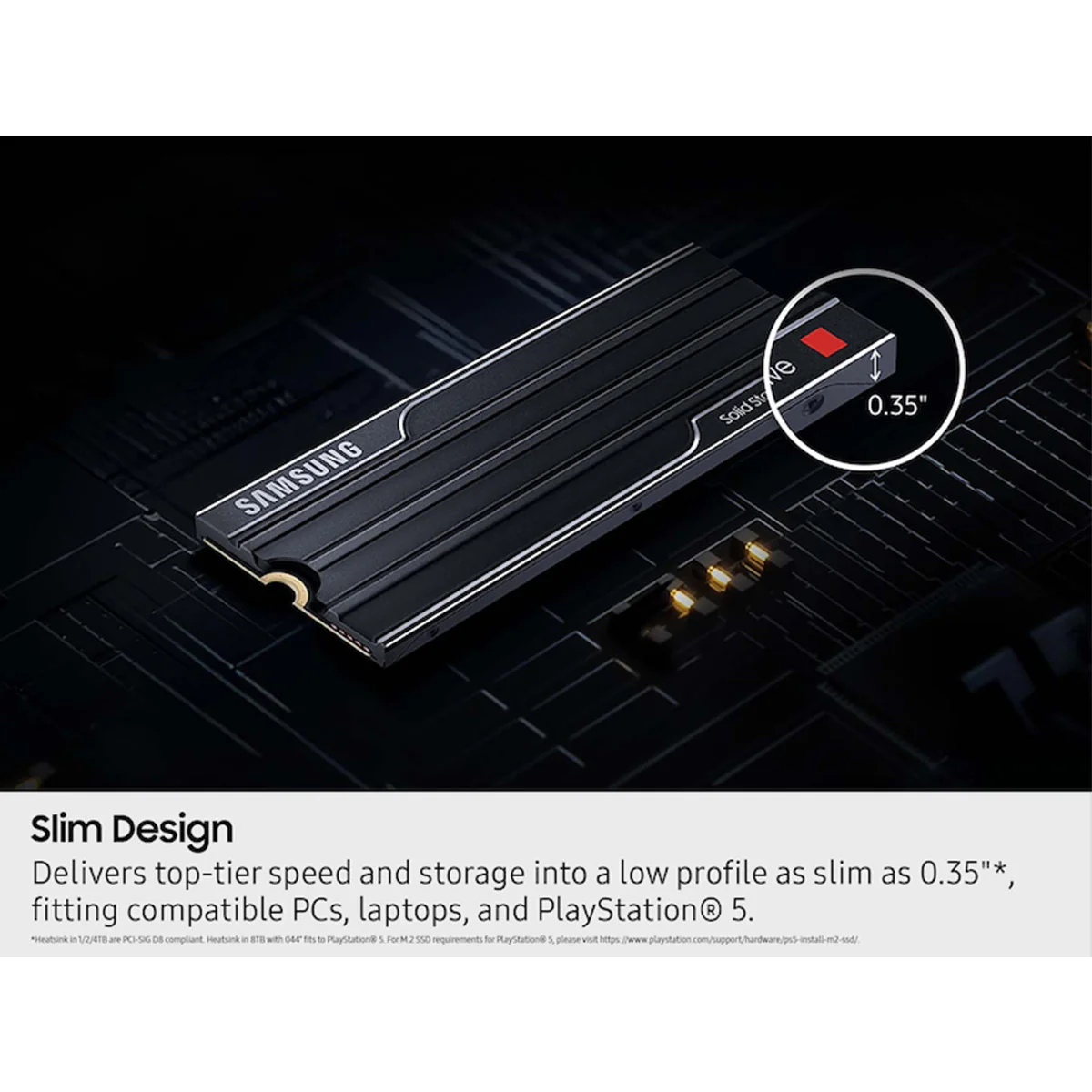

DIMENSION (WxHxD)	1TB/2TB/4TB : 80.15 x 25 x 8.88 mm 8TB : 80.15 x 25 x 11.25 mm
WEIGHT	1TB/2TB/4TB : Max 30.0g 8TB : Max 35.0g
STORAGE MEMORY	Samsung V-NAND TLC
CONTROLLER	Samsung in-house Controller
CACHE MEMORY	1TB: Samsung 1GB Low Power DDR4X SDRAM 2TB: Samsung 2GB Low Power DDR4X SDRAM 4TB: Samsung 4GB Low Power DDR4X SDRAM 8TB: Samsung 8GB Low Power DDR4X SDRAM
Special Feature - TRIM Support	Supported
S.M.A.R.T Support	Supported
GC (GARBAGE COLLECTION)	Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT	AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)
WWN SUPPORT	Not supported
DEVICE SLEEP MODE SUPPORT	Yes
Performance - SEQUENTIAL READ	1TB: Up to 14,700 MB/s 2TB: Up to 14,700 MB/s 4TB: Up to 14,800 MB/s 8TB: Up to 14,800 MB/s
Performance - SEQUENTIAL WRITE	1TB: Up to 13,300 MB/s 2TB: Up to 13,400 MB/s 4TB: Up to 13,400 MB/s 8TB: Up to 13,400 MB/s
RANDOM READ (4KB, QD32)	1TB: Up to 1,850,000 IOPS 2TB: Up to 1,850,000 IOPS 4TB: Up to 2,200,000 IOPS 8TB: Up to 2,200,000 IOPS
RANDOM WRITE (4KB, QD32)	1TB: Up to 2,600,000 IOPS 2TB: Up to 2,600,000 IOPS 4TB: Up to 2,600,000 IOPS 8TB: Up to 2,600,000 IOPS
Environment - AVERAGE POWER CONSUMPTION (System Level)	1TB: Average 7.6 W (Maximum 7.2 W burst mode) 2TB: Average 8.1 W (Maximum 7.9 W burst mode) 4TB: Average 9 W (Maximum 8.2 W burst mode) 8TB: Average 10.5 W (Maximum 8.8 W burst mode)
POWER CONSUMPTION (IDLE)	1TB: Max. 4 mW 2TB: Max. 4.8 mW 4TB: Max. 6.5 mW 8TB: Max. 9.3 mW
POWER CONSUMPTION (DEVICE SLEEP)	1TB: Max. 3.3 mW 2TB: Max. 4 mW 4TB: Max. 5.7 mW 8TB: Max. 8.6 mW
ALLOWABLE VOLTAGE	3.3 V ± 5 %
RELIABILITY (MTBF)	1.5 Million Hours
OPERATING TEMPERATURE	0 - 70 °C
Shock	1,500 G & 0.5 ms (Half sine)
Accessories - INSTALLATION KIT	Not Available
Software - MANAGEMENT SW	Magician Software for SSD management
